How to Choose a Drilling Rig Power Catwalk

Key Takeaways:

• Electric servo beats hydraulic — 99.2% system availability across 14 months, zero hydraulic leaks, -30°C cold-start capability.
• Single joint mode for standard tripping, trip/stand mode for deep wells >5,000m — the difference is $30,000+ in rig time per well.
• 8,882m field-verified — 50,000+ pipe joints in Asia’s deepest well, zero safety incidents.
• Cost anchor: $412,400 saved per ultra-deep well through 40-60% faster rig moves and 3-4 fewer crew per shift.

Why Power Catwalk Selection Matters

A pipe handling catwalk is not a commodity. Wrong drive system — your crew fights hydraulic leaks at -30°C. Wrong mode — you lose 2 hours per trip on a 6,000m well. Wrong sizing — your 13.76m rig floor gets a catwalk rated for 7.5m.

On a deep drilling program, these aren’t inconveniences. They’re $2,000-$3,000/hour in non-productive time. The catwalk moves every single joint of drill pipe, casing, and drill collar from rack to floor — 500-1,000 times per well. Get the selection wrong, and you pay for it every trip.

This guide walks you through the four decisions that determine whether your catwalk becomes a competitive advantage or a bottleneck: electric vs hydraulic, single joint vs trip mode, sizing to rig floor height, and operational envelope. Along the way, we anchor every claim to field data — 8,882m wells, 50,000+ joints, 20+ rig deployments.

Decision 1: Electric Servo vs Hydraulic Drive

The first choice defines everything downstream — maintenance burden, cold-weather reliability, control precision, and energy cost. Here’s how the two drive systems compare on the metrics that matter on a drilling rig.

Dimension	Electric Servo	Hydraulic
Control precision	Position feedback ±1mm, programmable motion profiles	Flow-valve control, ±5-10mm, sensitive to oil temperature
Cold-start (-30°C)	Full torque from power-on, no preheat	Requires hydraulic oil preheat, 20-40 min warmup
Maintenance load	Gearboxes + bearings only, no oil circuit	Hoses, seals, pumps, filters, oil changes — leak points everywhere
System availability	99.2% (14-month field record, 90008 crew)	Typically 92-96% — hydraulic leaks account for 60%+ of downtime
Energy efficiency	85-90% — servo motors draw power only when moving	60-70% — pump runs continuously, energy lost as heat in valves
Explosion-proofing	IP65 pressurized enclosure, CAN-bus isolated nodes	Multiple seal points, each a potential leak path in Zone 2
Typical price premium	Baseline	10-15% cheaper upfront, 3-5× higher lifetime maintenance

Bottom line: If your rig operates below -10°C, in remote locations with limited maintenance support, or targets >90% operational availability — go electric. The 10-15% upfront premium pays back in the first winter alone, when hydraulic rigs are burning diesel to preheat oil while electric rigs are already tripping pipe.

For rigs in moderate climates with strong on-site hydraulic maintenance capability, hydraulic remains a viable option — but calculate your total cost of ownership over 5 years, not just the purchase price.

Decision 2: Single Joint vs Trip (Stand) Mode

This is the decision most buyers overlook — and it costs them $30,000+ per deep well in wasted trip time. The question is simple: does your catwalk deliver one joint at a time or three joints as a stand?

Factor	Single Joint (上一甩一)	Trip / Stand (上三甩三)
Best for	Shallow/intermediate wells (<3,000m), workovers, sidetracks	Deep wells (>5,000m), development drilling, ultra-deep
Trips per 6,000m well	~700 catwalk cycles	~235 catwalk cycles
Cycle time	<80s (7.5-8m model)	<80s per 3-joint stand (7.5-8m model)
Total trip time impact	~15.5 hours pure catwalk time	~5.2 hours pure catwalk time
Rig time saved	Baseline	~10.3 hours per well at $2,500/hr = $25,750+ per well
Upfront cost premium	Baseline	~7-8% higher
Transport complexity	Lower — simpler frame	Slightly higher — split transport <12,500mm maintained

The Decision Tree

Here’s how to choose in 30 seconds:

Decision 3: Match the Catwalk to Your Rig Floor

Catwalks come in five height classes. The rule is simple: match the catwalk’s rated range to your rig floor height. Undersized — the angle is too steep, pipe slides, cycle times blow out. Oversized — you pay for capacity you don’t use and complicate transport.

Rig Floor Height	Max Pipe Length	Max OD (Casing)	Cycle Time	Installed Power
7.5–8 m	13.5 m	24″	<80 s	105 KW
9.5–10 m	13.5 m	24″	<90 s	105 KW
10.5–11 m	13.5 m	24″	<100 s	105 KW
12–12.5 m	13.5 m	24″	<115 s	120 KW
13.76–14 m	13.5 m	24″	<130 s	120 KW

All five models share a 13.5m maximum pipe length envelope with split-transport capability (<12,500mm per section). The 24″ casing and 11″ drill collar maximums are consistent across the range. What changes with height is cycle time — taller rig floors mean longer stroke lengths and proportionally longer cycles.

Decision 4: Operational Envelope — What the Spec Sheet Won’t Tell You

Technical specs answer “can this catwalk fit my rig.” Field experience answers “will it keep working when I need it most.” Here are five factors that separate spec-sheet contenders from drilling-program workhorses.

4.1 Rig Move Efficiency

A power catwalk doesn’t just handle pipe — it fundamentally changes how fast you can rig up and rig down. On a conventional rig, pipe handling setup adds days to each move. With an integrated electric catwalk:

• Rig move time: 15-20 days → 7-10 days (40-60% faster)
• Split transport: All five models break down to <12,500mm sections — standard flatbed, no oversize permits
• Reassembly: Modular CAN-bus control nodes — plug and go, no hydraulic circuit bleeding

If your drilling program involves 3+ rig moves per year, this alone justifies the electric catwalk premium.

4.2 Cold-Weather Start

In basins where winter temperatures hit -20°C to -30°C — Xinjiang, western Canada, Siberia — hydraulic catwalks face a daily 20-40 minute warmup ritual. Electric servos deliver full torque from the moment the breaker closes. No preheat. No viscosity wait. This is not a minor convenience: over a 90-day winter drilling campaign, 30 minutes of daily warmup = 45 hours of lost tripping time.

4.3 Pipe Range Compatibility

The catwalk must handle everything your drilling program throws at it: 2⅞” drill pipe for the production section, 5½” heavy-weight drill pipe for the intermediate, 9⅝” casing and 13⅜” surface casing, and 8-11″ drill collars for the BHA. Verify the full range — some catwalks can handle drill pipe but struggle with large-diameter casing or heavy collars. The 45 KN load rating on all five models covers standard BHA components; for heavy-duty collars, confirm your specific collar weight against the 45 KN limit.

4.4 Explosion-Proof Classification

On a drilling rig, the catwalk operates in Zone 2 (gas present under abnormal conditions). Electric catwalks address this through IP65 pressurized enclosures and isolated CAN-bus nodes — each node independently sealed, so a single failure doesn’t cascade. Hydraulic systems must maintain seal integrity across dozens of fittings, hoses, and connectors. In Zone 2, fewer potential leak paths = lower risk.

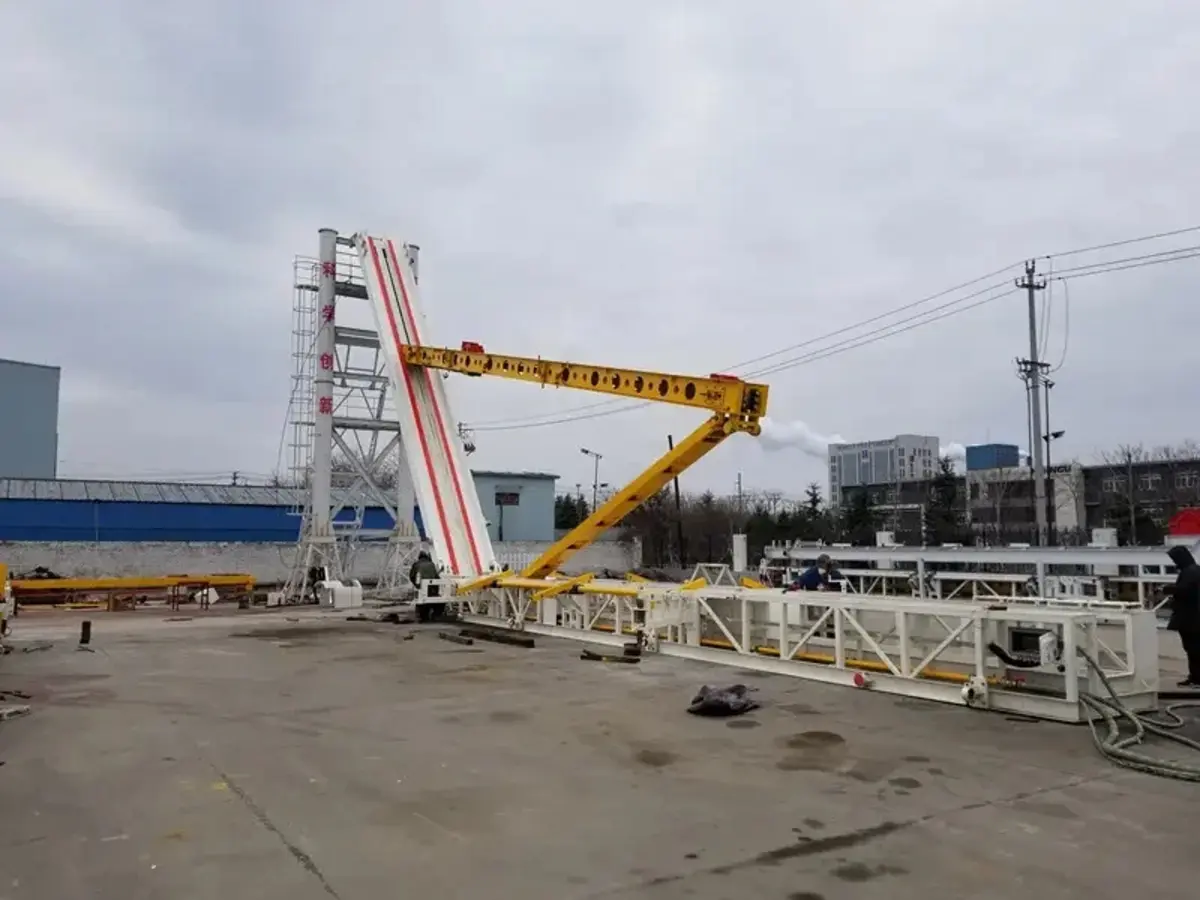

Field-Proven: The 8,882m Tarim Basin Data Anchor

The best selection guide is a real well. Here’s what happened when a Jingtao Energy electric power catwalk went to work on Asia’s deepest well with PetroChina’s 90008 drilling crew.

Metric	Result
Well depth	8,882 m — deepest in Asia at time of drilling
Total pipe joints handled	50,000+ across 20+ rig deployments
Safety incidents	0 — zero recordable incidents across all deployments
System availability	99.2% over 14 months continuous operation
Crew reduction	3-4 personnel per shift (catwalk operator + pipe handler roles eliminated)
Cost savings per well	$412,400 (rig move time + crew + zero NPT from pipe handling)
Ultra-deep wells served	Nearly 10 wells >7,000m across Xinjiang and Tarim fields

This isn’t a single-well anecdote. The same catwalk platform has deployed across 20+ drilling rigs in western China — operating from -30°C Xinjiang winters to +50°C Tarim summers. The 99.2% availability number comes from PetroChina’s own maintenance logs, not a manufacturer’s claim.

Full deployment details: Power Catwalk 8,882m Ultra-Deep Well Case Study

Power Catwalk Selection Checklist

Use this checklist when evaluating catwalk proposals. Tick every box before signing.

#	Check	Why It Matters
1	Drive system: electric or hydraulic — is it right for your climate?	Hydraulic fails first in cold; electric costs more upfront
2	Single joint or trip mode — based on your average well depth?	Trip mode saves $25K+/well beyond 5,000m
3	Rig floor height matched to catwalk model range?	Mismatch = slow cycles or steep pipe angles
4	Full pipe range: 2⅞” DP through 24″ casing + drill collars?	Gap in range = manual handling = safety risk
5	45 KN+ load capacity for your heaviest BHA components?	Undersized = derated operations or equipment damage
6	Explosion-proof: IP65 enclosures + CAN-bus isolation?	Zone 2 compliance is non-negotiable
7	Split-transport <12,500mm — no oversize permits?	Oversize transport adds 5-15 days and $15-40K per move
8	Field-verified at depth ≥ your deepest planned well?	Ask for deployment data, not design specs
9	System availability data from a real drilling campaign?	>98% = electric. <95% = hydraulic or poor integration
10	ISO 9001/14001/45001 certified manufacturer?	Certification = process discipline, not just product quality

How Jingtao Energy’s Catwalk Stacks Up

The Jingtao Energy power catwalk checks every box on the selection checklist above — and brings data to prove it. Key differentiators:

• All-electric servo drive across all five models — no hydraulic compromise, no cold-weather warmup
• Dual-mode: single joint + trip (stand) — the same catwalk handles workovers and deep drilling without reconfiguration
• 8,882m verified — operated at depths 40% beyond its design rating without incident
• Split-transport standard — all models break to <12,500mm, truck on standard flatbeds
• 200+ units/year capacity with ISO 9001/14001/45001 certification — you’re not betting on a prototype
• 10-person R&D team with university and drilling institute partnerships — continuous improvement, not a one-off design

See the full product specifications: Automated Pipe Handling Catwalk for Drilling Rigs

Deep-dive on the 8,882m deployment: 50,000+ Joints, 0 Incidents — 8,882m Field Data

Technical Data Sheet

Parameter	Specification
Drive type	All-electric AC servo, no hydraulics
Rig floor height range	7.5 m – 14 m (5 models)
Max pipe length	13.5 m
Drill pipe range	Φ73 mm – Φ139.7 mm (2⅞” – 5½”), 3 joints/trip
Max casing OD	24″
Max drill collar OD	11″
Max load	45 KN
Cycle time	<80 – <130 s (model-dependent)
Installed power	105 – 120 KW

Data sourced from Jingtao Energy product specifications and PetroChina 90008 crew field maintenance logs. Individual performance varies by well conditions, rig configuration, and crew proficiency. All specifications subject to continuous improvement.

Frequently Asked Questions

What’s the real payback period for an electric power catwalk?

On a deep drilling program (>5,000m wells, 5+ wells/year), payback typically lands in 12-18 months. The math: $412,400 saved per ultra-deep well (rig move acceleration + crew reduction + zero pipe-handling NPT) × 3-5 wells/year. For shallower programs (<3,000m), payback stretches to 24-36 months — still positive, but driven more by safety and crew efficiency than pure rig-time savings. The 40-60% rig move time reduction alone (15-20 days → 7-10 days) often justifies the investment for operators moving rigs frequently.

Can a single catwalk handle both drill pipe and casing?

Yes — the Jingtao catwalk handles 2⅞”-5½” drill pipe, casing up to 24″ OD, and drill collars up to 11″ OD without tooling changes. The 45 KN load rating covers standard BHA components. The catwalk’s gripper mechanism adjusts automatically to pipe diameter — the operator selects the pipe type on the control panel and the system adapts grip pressure and feed profile. This single-system approach eliminates the need for separate casing handling equipment, saving deck space and simplifying crew training.

What happens if the power fails mid-operation?

The servo motors have electromagnetic brakes that engage on power loss — the pipe is mechanically locked in position, not hydraulically held. The control system is designed with fail-safe logic: on power interruption, the catwalk freezes in place with the load secured. Restart procedure takes under 3 minutes — the controller auto-homes all axes and resumes from the last known position. In 14 months of continuous operation on the 90008 crew’s rig, there were zero load-dropping incidents during power interruptions.

How does the electric catwalk perform in extreme heat?

The catwalk’s rated temperature range is -30°C to +50°C ambient. In the Tarim Basin, where summer surface temperatures regularly exceed 45°C, the IP65 pressurized enclosures prevent dust ingress (a bigger threat than heat), and the servo drives’ thermal management automatically derates at 55°C internal — a threshold that field data shows is rarely reached even at 50°C ambient. The absence of hydraulic oil eliminates heat-soak problems: there’s no fluid to overheat, no viscosity breakdown, and no thermal expansion to compensate for.

Is the catwalk compatible with existing rig control systems?

The catwalk uses isolated CAN-bus communication nodes with standard industrial protocols. Integration with existing rig control systems (Siemens, ABB, NOV Amphion) is handled at the CAN-bus level — the catwalk appears as a node on the rig network, responding to start/stop/status commands through a defined interface. For rigs without a modern control system, the catwalk ships with its own independent control console — a touchscreen panel in the driller’s cabin that requires no integration. Full integration typically adds 2-3 days to commissioning.

What maintenance does an all-electric catwalk actually need?

Daily: visual inspection of cables, connectors, and gripper pads (10 minutes). Weekly: lubricate linear bearings and pivot points (30 minutes). Monthly: check gearbox oil level, verify brake holding torque, run full motion calibration cycle (2 hours). Annually: replace gearbox oil, inspect servo motor bearings, test all emergency stop circuits (1 shift). No hydraulic oil changes, no filter replacements, no hose inspections, no seal replacements, no fluid contamination testing — these eliminated tasks account for 60-70% of hydraulic catwalk maintenance hours. Total annual maintenance: approximately 60-80 hours vs 200-300 hours for a hydraulic equivalent.
